WXI-DAM

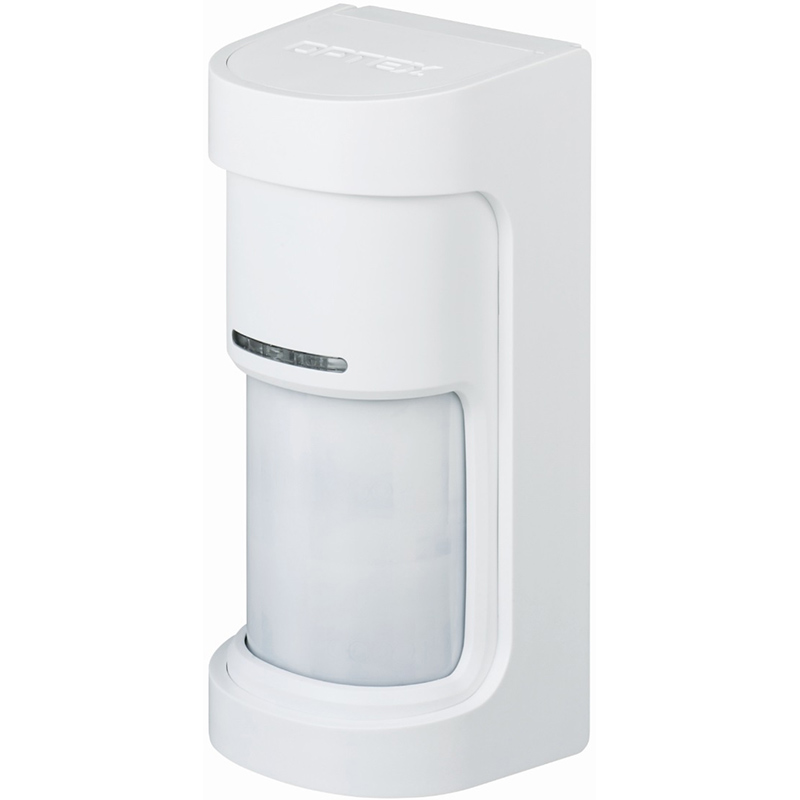

OPTEX WXI-DAM

• Dual technology motion detector
• Infrared and microwave
• Antimasking
• Day/Night function
• Outdoor
• Wired
• 2 pyroelectric elements
• Range: 12m
• Coverage angle: 180°
• 14 detection zones
• Special distance and sensitivity adjustment for each area of 90°
• 5 distance adjustment levels
• SDMA logic for false alarm rejection
• NO/NC automatic temperature control circuit
• 2 alarm outputs (one for each area)
• Low Mount installation height: 0.8-1.2m (optional detection range from 2.5m to 12m)
• High Mount installation height: 2m (standard detection range at 9m)
• Detection speed: 0.3-2m/sec
• Sensitivity: 2,0°C@0,6m/s
• Operating voltage: 9.5-18VDC
• Consumption: 24mΑ
• Operating temperature: -20°C – +45°C
• Back Tamper
• Protection degree: ΙΡ 55
• Dimensions: 81.5 x 201.5 x 86.3mm
